Videojet IP DataFlex Plus

Previous ‹‹ » Next

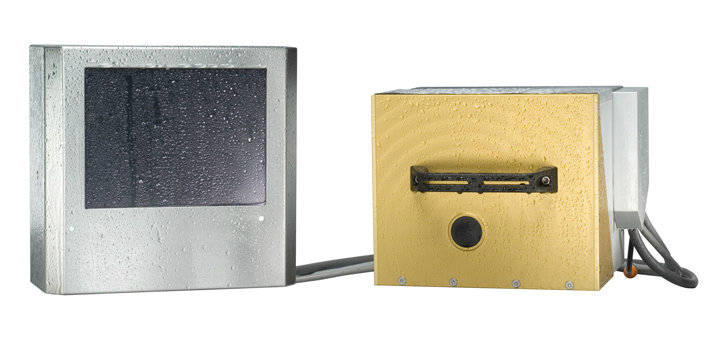

Videojet IP DataFlex Plus

The Videojet IP-rated DataFlex Plus Thermal Transfer Overprinter is ideal for flexible film coding applications where the line undergoes washdown after production is complete. The IP-rated DataFlex can remain in place during washdown therefore minimizing preparation time and allowing maximum operator utilization.


Printer Mode Intermittent and Continuous Motion
Print Gap 0.5 mm (0.02 in)
Maximum Ribbon Length 1200 m (3937 ft)
Ribbon Widths Min: 20 mm (0.8 in)
Max: 55 mm (2.17 in)
Continuous Mode:
      Maximum Print Area (Width x Length) 53 x 200 mm (2.09 in x 7.86 in)
      Maximum Print Speed 1000 mm/s (39.37 in/sec)
      Minimum Print Speed 0 mm/sec (0 in/sec)
Intermittent Mode:
      Maximum Print Area (Width x Length)

53 x 75 mm (2.09 x 2.95 in) RH model
53 x 68 mm (2.09 x 2.68 in) LH model

      Maximum Print Speed 800 mm/sec (31.50 in/sec)
      Minimum Print Speed 50 mm/sec (1.96 in/sec)
Bar Code Printing Yes, as variable information
Estimated Maximum Throughput (Single Line Code, Continuous Mode) Approximately 400 packs/min
Environmental Protection IP65 printer, IP55 Controller
Standard User Interface CLARiTY™ 8.4 inch SVGA color LCD touchscreen
Master/Slave Capability (Up to 4 Printers Controlled by One User Interface) Optional
Standard Communication RS232, Ethernet, USB Memory Stick, Binary and ASCII comms
Web Browser Capability Yes
