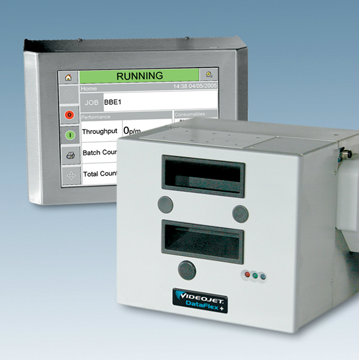

Videojet DataFlex Plus

The Videojet DataFlex Plus Thermal Transfer Overprinter delivers high resolution images on flexible packaging, while minimizing downtime and cost associated with ribbon breaks and production changeovers. The DataFlex Plus is available in two print widths, 53 mm and 107 mm, to provide the best combination of printhead and ribbon width to deliver the most cost effective solution for your application requirements.

Specs

Specification
53 mm 107 mm
Printer Mode Intermittent and Continuous Motion Intermittent and Continuous Motion
Print Gap 0.5 mm (0.020 in) 0.5 mm (0.020 in)
Ribbon Widths Min: 20 mm (0.8 in)
Max: 55 mm (2.16 in)
Min: 20 mm (0.8 in)
Max: 110 mm (4.30 in)
Continuous Mode:
     Maximum Print Area
     (Width x Length)

53 x 200 mm
(2.09 x 7.87in)

107 x 200 mm
(4.21 x 7.87in)

     Maximum Print Speed 1000 mm/s (39.37 in/sec) 800 mm/s (31.49 in/sec)
     Minimum Print Speed 0 mm/sec (0 in/sec) 0 mm/sec (0 in/sec)
Intermittent Mode:
     Maximum Print Area
     (Width x Length)
53 x 75 mm
(2.09 x 2.95 in) RH option
53 x 68 mm
(2.09 x 2.68 in) LH option
107 x 75 mm
(4.21 x 2.95 in) RH option
107 x 68 mm
(4.21 x 2.68 in) LH option
     Maximum Print Speed 800 mm/sec (31.49 in/min) 700 mm/sec (27.56 in/min)
     Minimum Print Speed 50 mm/sec (1.96 in/sec) 50 mm/sec (1.96 in/sec)
Bar Code Printing Yes, as variable information Yes, as variable information
Estimated Maximum Throughput (Single Line Code, Continuous Mode) 400 packs/min 200 packs/min
Standard User Interface CLARiTY™ 8.4 inch SVGA color LCD touchscreen CLARiTY™ 8.4 inch SVGA color LCD touchscreen
Master/Slave capability (Up to 4 Printers Controlled by One User Interface) Optional Optional
Standard Communication RS232, Ethernet, USB Memory Stick, Binary and ASCII comms RS232, Ethernet, USB Memory Stick, Binary and ASCII comms
Web Browser Capability Yes Yes
