Videojet DataFlex 6320

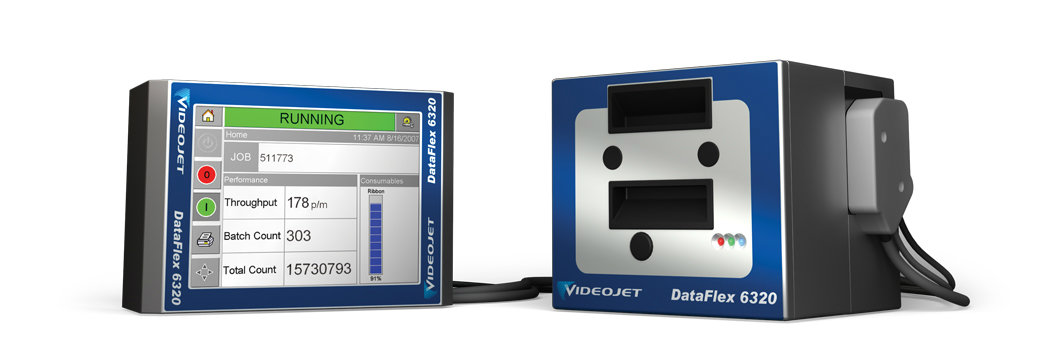

The Videojet DataFlex 6320 Thermal Transfer Overprinter is a available in two print widths, 32 mm and 53 mm, to provide the best combination of printhead and ribbon width to deliver the most cost effective solution for your application requirements. Engineered for applications such as vertical form fill and seal, the DataFlex 6320 delivers print speeds up to 250 packs/min.

Specs

Specification
32 mm 53 mm
Printer Mode Intermittent and Continuous Motion Intermittent and Continuous Motion
Print Gap 0.5 mm (0.020 in) 0.5 mm (0.020 in)
Maximum Ribbon Length 1200 m (3937 ft) 1200 m (3937 ft)
Ribbon Widths Min: 20 mm (0.8 in)
Max: 55 mm (2.16 in)
Min: 20 mm (0.8 in)
Max: 55 mm (2.16 in)
Continuous Mode:
     Maximum Print Area
     (Width x Length)

53 x 200 mm
(2.08 x 7.87 in)

53 x 200 mm
(2.05 x 7.87 in)

     Maximum Print Speed 750 mm/sec (29.53 in/sec) 750 mm/sec (29.53 in/sec)
     Minimum Print Speed 0 mm/sec (0 in/sec) 0 mm/sec (0 in/sec)
Intermittent Mode:
     Maximum Print Area
     (Width x Length)
32 x 75 mm
(1.26 x 2.95 in) RH option
32 x 68 mm
(1.26 x 2.68 in) LH option
53 x 75 mm
(2.08 x 2.95 in) RH option
53 x 68 mm
(2.08 x 2.68 in) LH option
     Maximum Print Speed 750 mm/sec (29.53 in/sec) 750 mm/sec (29.53 in/sec)
     Minimum Print Speed 50 mm/sec (1.96 in/sec) 50 mm/sec (1.96 in/sec)
Bar Code Printing Yes, as variable information Yes, as variable information
Estimated Maximum Throughput (Single Line Code, Continuous Mode) 250 packs/min 250 packs/min
Standard User Interface CLARiTY™ 8.4 inch SVGA color LCD touchscreen CLARiTY™ 8.4 inch SVGA color LCD touchscreen
Master/Slave Capability (Up to 4 Printers Controlled by One User Interface) Optional Optional
Standard Communication RS232, Ethernet, USB Memory Stick, select ZPL command emulation, Binary and ASCII comms RS232, Ethernet, USB Memory Stick, select ZPL command emulation, Binary and ASCII comms
Web Browser Capability Yes Yes
