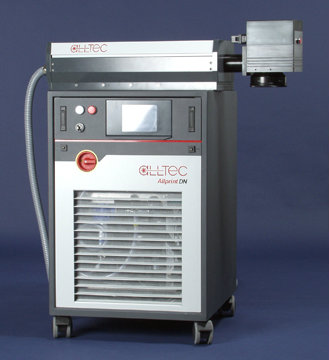

Designed in conjunction with our sister company Foba Alltec, the Videojet DN50A and LN100A are Nd:YAG lasers designed to meet the most stringent laser marking requirements for throughput, flexibility, user-friendliness, reliability and quality. The 50 Watt DN50A is suited for applications involving engraving, a color change, color removal or annealing marking at impressively high resolution. The 100 Watt LN100A is suited for engraving applications at higher power levels for greater throughput.

Specs

Specification	DN50A	LN100A
Laser Tube	Nd:YAG	Nd:YAG
Maximum Power	50W	100W
Laser Cooling	Liquid, Internal source	Liquid, External source
Maximum Print Speed	1300 characters/sec	1300 characters/sec
Maximum Line Speed	900 m/min (3000 ft/min)	900 m/min (3000 ft/min)
Environmental Protection	IP44 (Laser Head), IP42 (Laser), IP22 (Marking Head)	IP44 (Laser Head), IP42 (Laser), IP22 (Marking Head)
Beam Output	Digital high-speed galvanometer scanner	Digital high-speed galvanometer scanner
Laser Source Expected Life	10,000 – 15,000 hours	1,000 - 2,000 hours
Laser Wavelength	1.064 μm	1.064 μm
Focal Distance Options	100 mm (3.93 in) – 420 mm (16.53 in)	100 mm (3.93 in) – 420 mm (16.53 in)
Maximum Mark Window	498.5 x 361.5 mm (19.62 x 14.23 in)	498.5 x 361.5 mm (19.62 x 14.23 in)
Standard I/O Connectivity	Ethernet, RS232	Ethernet, RS232
Standard User Interface	Touch screen	Touch screen
Optional User Inteface	PC, Handheld, Software	PC, Handheld, Software
