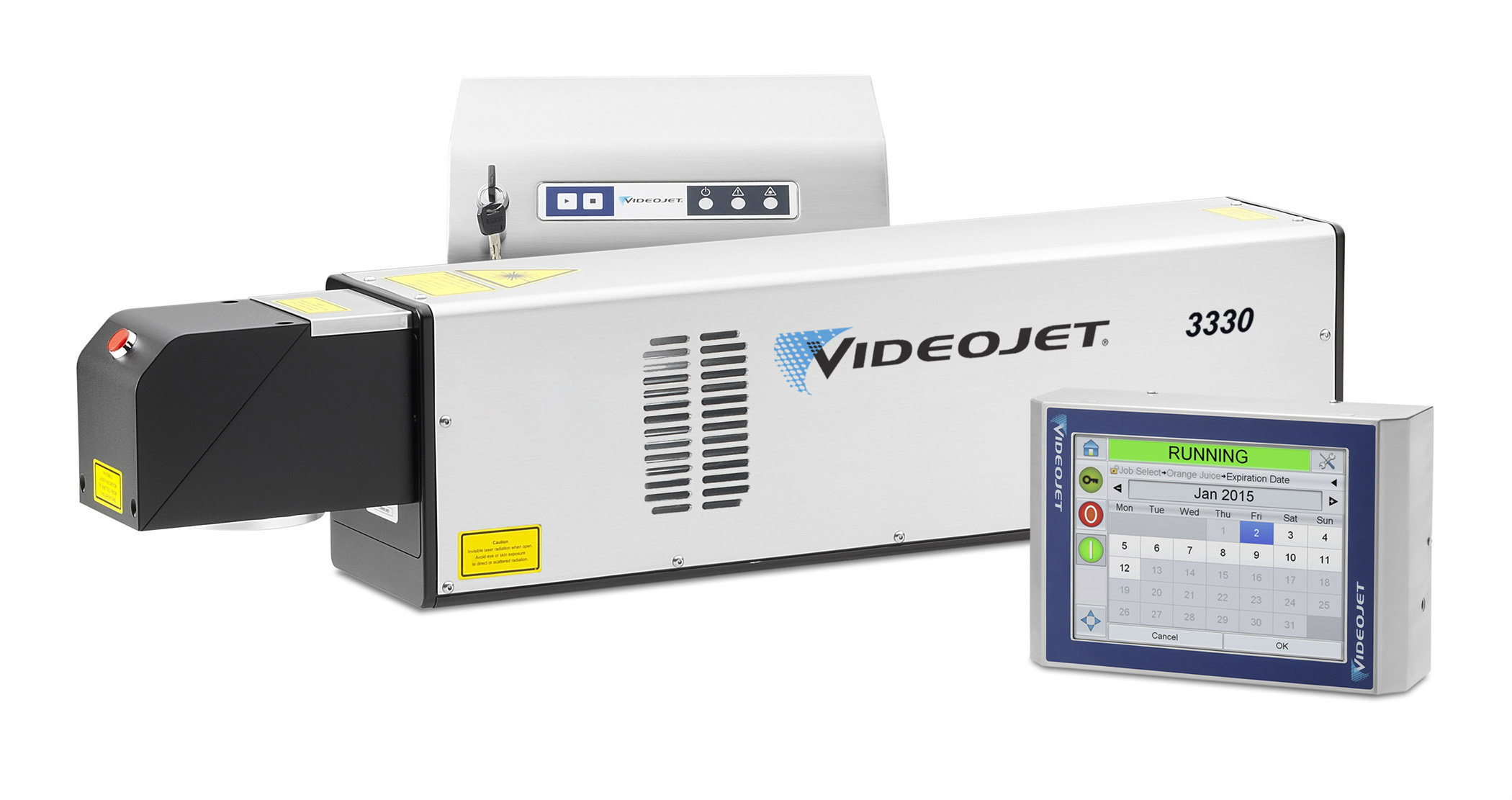

The 3330 30-Watt laser offers a powerful combination of performance and flexibility delivering high quality marks on moderate to high speed lines. Designed to maintain the best quality codes on high speed lines. Virtually no font, code or graphic restrictions, makes the 3330 an ideal solution for marking complex codes to meet the demand of applications in food, beverage, cosmetics, pharmaceutical and extrusion industries. A diverse combination of marking heads, lenses and wavelength options, delivers an industry leading 21 spot size variations to match a broad range of marking effects.

Specs

Specification	Value
Laser Tube	CO2
Maximum Power	30W
Laser Cooling	Air Cooled
Maximum Print Speed	1300 characters/sec
Maximum Line Speed	900 m/min (2950 ft/min)
Environmental Protection	IP32, 54, 65
Beam Output	Steered Beam
Laser Source Expected Life	45,000 hours
Laser Wavelength Options	10.6 μm, 10.2 μm, 9.3 μm
Focal Distance Options	64 mm (2.50 in) – 400 mm (15.75 in)
Maximum Mark Window	485 x 351 mm (19.09 x 13.81 in)
Standard I/O Connectivity	Internal Terminal Connections
Standard User Interface	Handheld
Optional User Inteface	PC, CLARiTY LaserController
Umbilical	Detachable, 3 Lengths
Plant Air Used	No
Certifications/Approvals	CE, TUV/NRTL, FCC Compliance(no certification required): ROHS,CDRH/FDA
