MAX-ARHP
Previous ‹‹ | » Next |

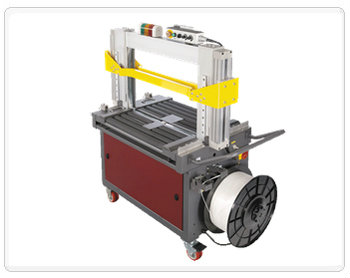

Product Name : High Speed Fully-Automatic Roller-driven Strapping Machine with Hard Compactor
Description
High speed strapping for your packaging demands, bottom seal strapping equipment - Max series - can widely increase your productivity with its advanced tensioning system, and makes your strapping job easier with extraordinary competitive advantages.
Corresponding to wide range of product sizes, effectively making the strapping securing process maximizes your production speed. Used for polypropylene straps in broad range of straps width from 5,6,9, to 12mm, this automatic strapping series is perfect match for general industry uses. Driven by servo motors expands to 52 straps/min for cycle time. Unique exchangeable modular table top enables more flexibility to carry on different operations. Equipped with aluminum arch and one-piece arch greatly increase the stability.
This high quality automatic strapping machine contains bottom heat sealed elements for maximum seal efficiency. Heavy duty top press device strengthens strapping performance. Including several valuable features such as auto load in feed and retracting system, loop ejector and short feeding detection device. Extra options add up its strapping performance and its user-friendly characteristics. Stainless housing is perfectly for meat or marine food products. Light or heavy duty top press compactor could be also applied upon your demand.
The most durable and robust strapping equipment; top-class and deluxe packaging machine for your daily operation.
Features
Description
High speed strapping for your packaging demands, bottom seal strapping equipment - Max series - can widely increase your productivity with its advanced tensioning system, and makes your strapping job easier with extraordinary competitive advantages.
Corresponding to wide range of product sizes, effectively making the strapping securing process maximizes your production speed. Used for polypropylene straps in broad range of straps width from 5,6,9, to 12mm, this automatic strapping series is perfect match for general industry uses. Driven by servo motors expands to 52 straps/min for cycle time. Unique exchangeable modular table top enables more flexibility to carry on different operations. Equipped with aluminum arch and one-piece arch greatly increase the stability.
This high quality automatic strapping machine contains bottom heat sealed elements for maximum seal efficiency. Heavy duty top press device strengthens strapping performance. Including several valuable features such as auto load in feed and retracting system, loop ejector and short feeding detection device. Extra options add up its strapping performance and its user-friendly characteristics. Stainless housing is perfectly for meat or marine food products. Light or heavy duty top press compactor could be also applied upon your demand.
The most durable and robust strapping equipment; top-class and deluxe packaging machine for your daily operation.
Features
- Built-in compactor unit.
- Top Press / Soft Compactor
- Power roller driven hinge table top.
- Servo motor direct driving system.
- Modular table top.
- Waist high self-loading device.
- Easy to adjust strap width.
- Strap end ejecting system.
- Electronic tension control.
- Looping ejector.
- Re-feeds upon failure feeding.
- Dispenser with electronic braking system.
- Big casters.
- Self-lubricated one-piece tarck.
- Table height adjustable.
- Strapping mode selector.
- Easily relocated pendant.
- Pendant can be easily relocated.
|
50 straps/min. |
|
5~75 kgs |
|
5,6,9,12,15mm sprcified |
|
Ø200, Ø230, Ø280 mm |
|
115V/230V/240V, 50/60Hz, 1PH |
|
6-35 m/min. |
|
1.5 KW(standard) |
|
72 L /min. |
|
800~1020 mm (adjustable) |
|
1286(L) x 575(W) x 1450(H)mm |
|
730 (W) x 504.5 (H) mm (standard) |
