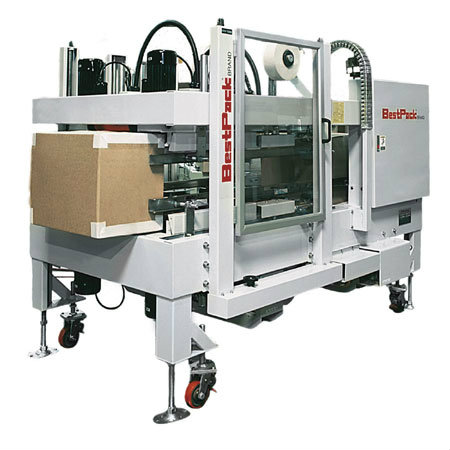

Fully Automatic Top and Bottom Drive Edgesealer (AT4E)

Fully Automatic Top and Bottom Drive Edgesealer (AT4E)

Fully Automatic Top and Bottom Drive Edgesealer (AT4E)


The BestPack? AT SERIES operator free, four outer edge carton sealing machines, using pressure sensitive tape. These machines are designed to eliminate costly hand taping of the four outer edges where pilfer proofing and protection of your product from outside environment is necessary. The AT model is designed for uniform edge sealing applications

The units are designed with an automatic 90? box turner. The AT4E edge sealers require 80 PSI and 10 CFM of air, and standard 110V 60 CPS, single phase current. (Unless otherwise specified at time of order.)

  • All units are available in standard finish or stainless steel.
  • Standard 3" Tape Head; 2" Tape Head available



  • Rugged Construction
  • Operator Free Design
  • Height/Width Adjustments on either side of Machines
  • Tape Roll Lengths: 1000 yd., 1500 yd., 2000 yd.
  • Heavy Duty Frame
  • UL Approved Electrical Parts
  • Designed for Uniform Carton Sizes
  • 2" Tape Head Available


Standard Equipment

  • Patented Brushing System for even application of tape.
  • Four Pop out Pressure Sensitive Tape Heads with patented tab adjustment
  • Locking Heavy-duty Casters/or Pegs.
  • Bottom Tape Air Blowers
  • Four Belt Drive
  • 90? Box Turner
  • Low Tape Sensor and Warning Light
  • Maintenance Free, Oil-Less Air Cylinders
  • Instruction Manual


Optional Equipment

  • Infeed/Exit Conveyor
  • Stainless steel
  • No Tape on Carton Sensor
  • Low Tape Sensor
  • Spare Parts Kit


Machine & Carton Specifications

Power Requirements:

110 Volt 60 CPS Single Phase Current

Air Requirements:

80 PSI 10 CFM


Up to 6 cartons/minute

Tape Head:

Standard: 3", Available: 2"

Machine Dimensions ¹:

L: 78.85"
W: 39.36"
H: 52.94"

Carton Min/Max Range²:

L: 11.81" - 23.62"
W: 9.84" - 23.62"
H: 9.84"- 23.62"

This page last updated: 02/07/2014

The information herein is subject to change without notice.

¹ Machine weight and dimensions may vary depending on carton sizes. Please view brochure for complete machine specifications.

² Carton ranges are fully customizable. Please inquire with our sales team with your specific requirements.
