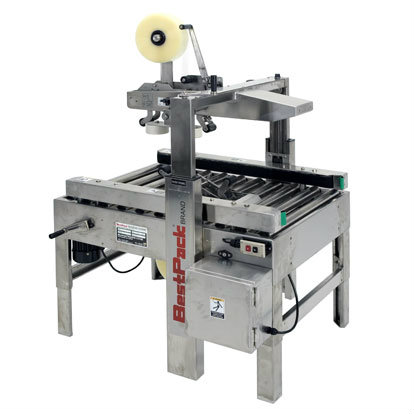

Sidedrive (MSD-S) Stainless Steel


The BestPack MSD Series Semi-Automatic Uniform Tape Carton Sealer is our most popular and top of the line operator-fed and adjusted carton sealing machine designed to cater to the needs of light-to-heavy duty uniform carton closure applications.

All systems incorporate our exclusive pop out pressure sensitive "High Speed" tape heads with patented tab adjustment, and the dual (telescopic) masts allow for an extra 4" carton height extension on the upper assembly.

All stainless steel sealers include stainless steel tapeheads.

  • All units are available in standard finish or stainless steel
  • Also available with 2" or 3" tapehead.



  • Two Side Belts
  • Telescopic Mast Design
  • Extra 4" Carton Height Adjustment Available on Upper Assembly
  • Adjustable Bed Height 31.0" to 35.0"
  • Width/Height Adjustment either side of machine
  • Exclusive 4 rollers Top Compression Unit
  • Tape Roll Lengths: 1000 yd., 1500 yd., 2000 yd.
  • Heavy Duty Frame
  • UL Approved Electrical Parts
  • Designed for uniform applications Capable of Interchanging 2" or 3" Tape Heads
  • Electrical on/off box can be mounted on either side of machine


Standard Equipment

  • Exclusive Pop-out pressure sensitive "high speed" tape head with patented tab adjustment and noise reduction arm
  • Operation Manual
  • Stainless Steel


Optional Equipment

  • High Speed Motor Upgrade (Up to 125 ft./min.)
  • 3 Flap Folder
  • Infeed/Exit Conveyor
  • Motorized Height and/or Width Adjustment
  • Locking Castors
  • Interlock Safety Gates
  • Spare Parts Kit


Machine & Carton Specifications

Power Requirements:

110 Volts 60 Hz


Up to 40 cartons/minute

Tape Head:

Standard: 2", Available: 3"

Shipping Weight:

342 - 550 lbs

This page last updated: 06/08/2006

The information herein is subject to change without notice.

¹ Machine weight and dimensions may vary depending on carton sizes. Please view brochure for complete machine specifications.

² Carton ranges are fully customizable. Please inquire with our sales team with your specific requirements.
