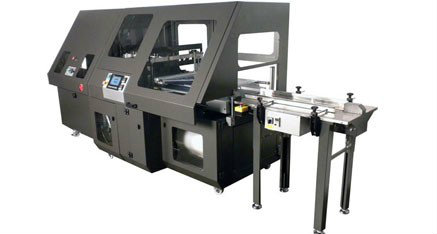

TP-5600 CS Fully Automatic Combo

“New design for 2012” “Combination Fully Automatic L’ Sealer and tunnel built on same frame”, “APA” Automatic Product Adjustment with features like motorized adjustment of inverting triangle,infeed, and center seal (no more crank handles to turn because of a fully motorized adjustment), single piece seal blade, easy load film cradle, fully enclosed safety doors, easy access control panel, self diagnosing Delta PLC, Delta 7″ Color Touch Screen with 12 program memory, “Vertical Seal Head Design” for packages up to 8″ high, Variable speed drive (0 to 110 FPM), Speeds to 40 PPM.

Specifications

• Seal Area: 25”L x 19”W x 8”H
• Power: 220 volts – 50 amps – single phase
• Machine dimensions: 107″L x 58″W x 62″H
• FOB: Rancho Cucamonga, CA
• Crated dimensions: 118”L x 64”W x 73”H
• Weight: 2500 lbs
• Warranty: 1 year on all parts
• Class: 85

Models

• TP-5600CS Automatic ComboFeatured
• TP-5600CS Combo-ss Stainless Steel frame construction, wipe down only

Available Options

• Closing Conveyor
• Print Registration
• Pneumatic Hole Punch
