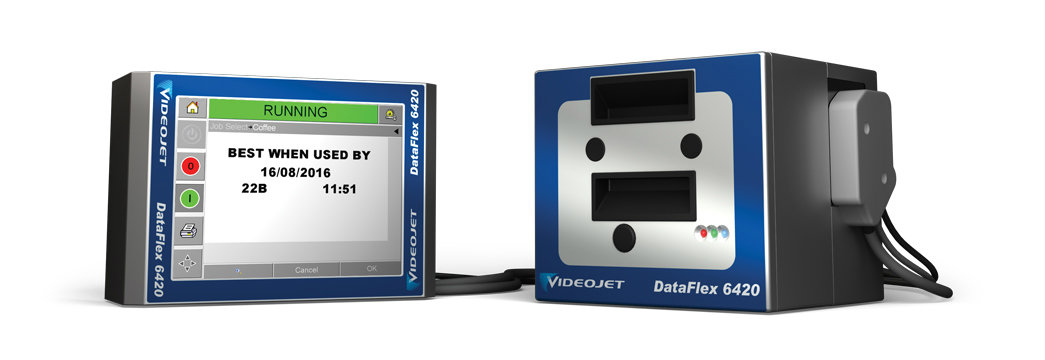

Videojet DataFlex 6420

When uptime, high performance and throughput are critical, the Videojet DataFlex 6420 Thermal Transfer Overprinter provides high speed printing for flexible packaging applications. The 6420 is available in two print widths, 53 mm and 107 mm, to meet your specific application needs. The 53 mm format is ideal for a range of flexible packaging applications including ultrafast horizontal form fill seal applications with throughput up to 400 packs/min. When coding applications require a significant amount of content, such as ingredient lists and traceability information, the 107 mm format offers the ideal wide format capability.

Specs

Specification
53 mm 107 mm
Printer Mode Intermittent and Continuous Motion Intermittent and Continuous Motion
Print Gap 0.5 mm (0.020 in) 0.5 mm (0.020 in)
Maximum Ribbon Length 1200 m (3937 ft) 700 m (2297 ft)
Ribbon Widths Min: 20 mm (0.8 in)
Max: 55 mm (2.17 in)
Min: 20 mm (0.8 in)
Max: 110 mm (4.33 in)
Continuous Mode:
      Maximum Print Area
      (Width x Length)

53 x 200 mm
(2.08 x 7.87 in)

107 x 200 mm
(4.33 x 7.87 in)
      Maximum Print Speed 1000 mm/sec (39.37 in/sec) 800 mm/sec (31.50 in/sec)
      Minimum Print Speed 0 mm/sec (0 in/sec) 0 mm/sec (0 in/sec)
Intermittent Mode:
      Maximum Print Area
      (Width x Length)

53 x 75 mm
(2.08 x 2.95 in) RH option
53 x 68 mm
(2.08 x 2.68 in) LH option

107 x 75 mm
(4.21 x 2.95 in) RH option
107 x 68 mm
(4.21 x 2.68 in) LH option

      Maximum Print Speed 800 mm/sec (31.50 in/sec) 700 mm/sec (27.56 in/sec)
      Minimum Print Speed 50 mm/sec (1.96 in/sec) 50 mm/sec (1.96 in/sec)
Bar Code Printing Yes, as variable information Yes, as variable information
Estimated Maximum Throughput (Single Line Code, Continuous Mode) 400 packs/min 200 packs/min
Standard User Interface CLARiTY™ 8.4 inch SVGA color LCD touchscreen CLARiTY™ 8.4 inch SVGA color LCD touchscreen
Master/Slave Capability (Up to 4 Printers Controlled by One User Interface) Optional Optional
Standard Communication RS232, Ethernet, USB Memory Stick, select ZPL command emulation, Binary and ASCII coms RS232, Ethernet, USB Memory Stick, select ZPL command emulation, Binary and ASCII coms
Web Browser Capability Yes Yes
