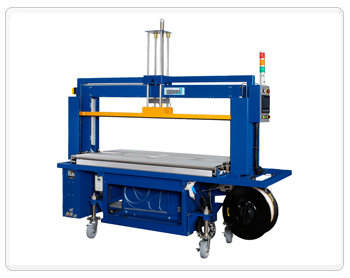

Product Name : Matrix 88C

Description
Jia-In Industry Co., Ltd. is one of the leading manufacturers of Strapping Machine and Wrapping Machine. Our main products include Corrugated Bundler, Pallet Wrapping Machine, Carton Sealing Machine and Strapping Tools.

High Performance Automatic In-Line Bundler specially designed for corrugated industry. strap width,5/6mm,9 mm, standard arch W 1650 x H 500 mm, option arch size: W 1450 x H 500 mm or W 1250 x H 500 mm
Easy to integrate with existing in-line conveyor system.
In front of this machine, it can integrate with squaring machine,CS1.
Sturdy construction and reliable system built for long lasting.

Features

• High speed servo motor direct driving system
• Heavy duty knurled roller conveyor, speed adjustable
• HMI touch screen control panel, user friendly
• Mitsubishi PLC
• Double bar with rubber press
• One piece tracking system
• Smooth & high speed feeding
• Dispenser swing 90 degree for easy loading
• Waisting height auto-loading system
• Looping ejector
• Capable to run narrow & light strap
• Wide range table height adjustment
• Safety interlock

Specification

	Cycle Time	33 strap/min

	Tension Range	2~30 kgs (5/6mm) max, 50 kgs (9mm)

	Strap Width	5/6 mm, 9mm

	Arch Size	1650W x 500H mm

	Conveyor Speed	9~50m/min

	Reel Inside Diameter..	200, 230, 280mm(specified)

	Power Supply	100/110/200/220/230/240V 50/60Hz,1PH

Table Height

693~1420MM(adjustable)

Power Consumption

1.9kw

Layout Dimension

2342(L)x790(W)x2049~2770(H)mm

Machine Weight

540kgs

Options
Arch size: 1450(W) x 500(H)mm & 1250(W) x 500(H)mm
