Matrix 88C + CS1

A-68C

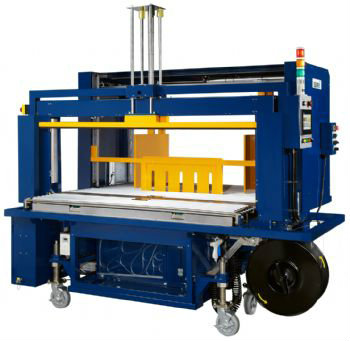

Product Name : Corrugated Bundler with Squaring Machine

Description
High performance automatic in-line bundler combined with square machine specially designed for corrugated industry. Sturdy construction and reliable system built for long lasting

Features
  • Squaring bundle device
  • High speed servo motor direct driving system
  • heavy duty knurled roller conveyor, speed adjustable
  • HMI touch screen control panel, user friendly
  • Mitsubishi PLC
  • Top press, stroke adjustable
  • One piece tracking system for smooth, high speed feeding
  • Dispenser swing 90 degree for easy loading
  • Waist height auto-loading system
  • Looping ejector
  • Capable to run narrow and light strap
  • Wide range table height adjustment
  • Safety interlock

Specification


Cycle Time

33 straps/min

Tension Range

2~50 kgs

Strap width

5/6mm, 9mm

Arch size

1650W x 500H mm

Conveyor speed

9~50 m/min

Reel Inside Diameter.

200, 230, 280 mm(specified)

Power supply

100/110/200/220/230/240V, 50/60Hz, 1PH

Table height

693~1420mm(adjustable)

Power Consumption

1.9KW

Layout dim. -Matrix 88C

L2342 x W790 x H2049~2770 mm

                     -CS1

L1950 x W760 x H1790 mm

Machine N.W. -Matrix 88C

540 kgs

                     -CS1

445 kgs
