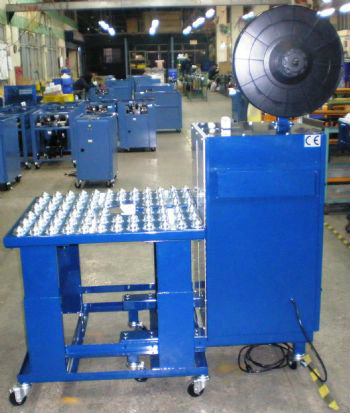

Product Name : Side Seal Semi-auto Strapping machine for donuts shape products

Description
Economical choice for limited strapping usage, side seal semi automatic strapping machines now offers you a simple option to apply packaging load securement with low maintenance costs and ease of operation, specially designed for donuts shape packaging applications, such as wires or tires.

Using polypropylene strap, this banding equipment which owns its aesthetic design and easy-to-operation characteristic is suitable for integrating with existed packing equipments and conveyors. Manufactured in Taiwan, this semi-auto strapping machine provides you the best packaging experience.

Features

• Stainless steel housing.
• Reliable microprocessor PCB control.
• Mechanical tensioning control
• Motor shut off for energy saving.
• Easy to operate, less maintenance.

Specification

	Cycle Time	5 sec/strap

	Tension Range	15~45 kgs

	Strap Width	12,15.5 adjustable

	Sealing Method	Heating element

	Reel Inside Diameter..	200 ,230 , 280mm (specified)

	Power Supply	110V/220V/230V/240V, 50/60Hz, 1 PH

	Table Height	800mm

Power Consumption

0.77 KW

	Layout Dimension	L1300 x D800 x H1625 mm

Machine Weight

78 kgs

Options

• Soft tension system : 7~35kgs.
