Random Quad Drive (RQ)

Previous ‹‹ » Next

Random Quad Drive (RQ)

Overview

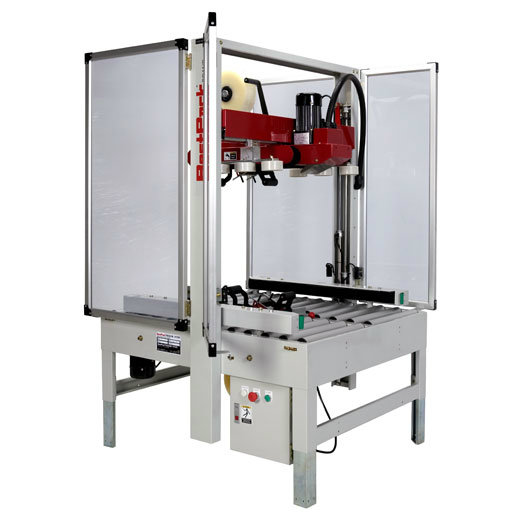

The BestPack RQ Series Semi-Automatic Random Tape Carton Sealers are built for speed and rugged dependability. The 4 belt carton sealer system is a solution for heavy-duty applications. This heavy duty workhorse is ideal for those rugged and random sealing applications

  • All units are available in standard finish or stainless steel.
  • Also available with 2" or 3" tape head.



Features

  • Handles Random Carton Sizes
  • Adjustable Bed Height from 20.25" to 30.75" for the RQ22 and 23.85" to 30.75" for the RQ33 and RQ44
  • 4 Belts - 2 top and 2 side
  • Extra 4" Carton Height Adjustment Available on Upper Assembly
  • Height Sensors
  • Tape Roll Lengths: 1000 yd, 1500 yd, 2000 yd.
  • Heavy Duty Frame
  • UL Approved Electrical Parts
  • Rugged Construction
  • Capable of Interchanging 2" or 3" Tape Heads
  • Electrical on/off box can be mounted on either side of machine



Standard Equipment

  • Exclusive Pop-out pressure sensitive "high speed" tape head with patented tab adjustment and noise reduction arm
  • Maintenance Free, Oil-less Air Cylinders
  • Operation Manual



Optional Equipment

  • Infeed/Exit Conveyor
  • Locking heavy-duty casters (4 casters)
  • High Speed Motor Upgrade (Up to 125 ft./min.)
  • Interlock Safety Gates
  • Random Side Compression Rollers
  • Low or No Taper Sensor
  • Stainless steel
  • Spare Parts Kit



Machine & Carton Specifications

Power Requirements:

110 Volts 60 Hz

Air Requirements:

90-100 PSI, 6-8 CFM

Speed:

Up to 25 cartons/minute

Tape Head:

Standard: 2", Available: 3"

Shipping Weight:

434 - 476 lbs


This page last updated: 12/13/2007

The information herein is subject to change without notice.

¹ Machine weight and dimensions may vary depending on carton sizes. Please view brochure for complete machine specifications.

² Carton ranges are fully customizable. Please inquire with our sales team with your specific
