Manual Sidedrive Bottom Flap Folder (MS)

Previous ‹‹ » Next

Manual Sidedrive Bottom Flap Folder (MS)

MSBF

Overview

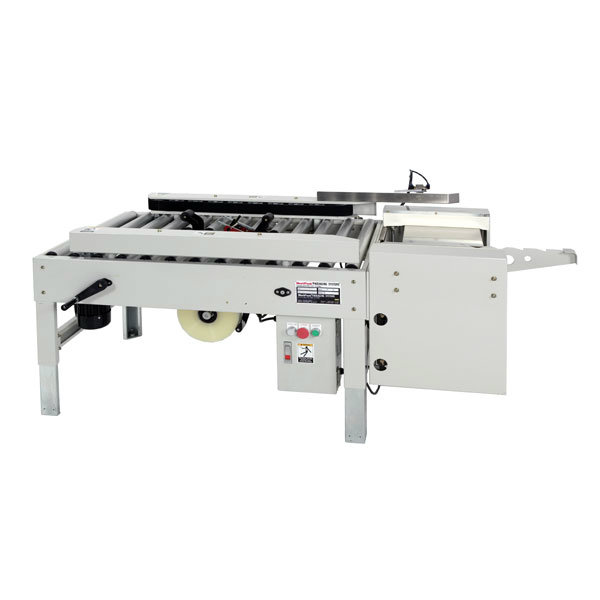

The BestPack MSBF SERIES sealer is a semi-automatic operator-fed adjustable carton erector/sealer. This unit is designed to reduce the time required to seal the bottom flaps of cartons, where the carton forming volume has become too large to hand form and hand tape the cartons, but the volume is too small to justify a fully automatic carton erector/sealer.

  • All units are available in standard finish or stainless steel.
  • Also available with 2" or 3" tape head
CARTON ERECTOR PROCESS

There are two stations to the carton erector. Station one folds the bottom flaps of the carton. Station two seals the bottom flaps and feeds the carton automatically on to a conveyor. At station one, the flap folding station, the operator takes a carton and opens it. With a downward and forward motion, the operator closes the front minor flap. Then with a slight downward reverse motion, the rear minor flap now has been closed. At that point, a micro switch activates two air cylinders that fold the two major flaps. The operator then feeds the carton slightly forward where two side belts grab the carton and feeds the carton through the sealing station and then out to the conveyor.



Features
  • The unit reduces operator fatigue and increases output.
  • Adjustable Bed Height from 24.5" to 30.75"
  • Compared to hand taping, the quality of the seal and the appearance of the carton is greatly improved.
  • Two Side Belts Width Adjustment on either side of machine
  • Tape Roll Lengths: 1000yd, 1500yd, 2000yd.
  • Heavy Duty Frame
  • UL Approved Electrical Parts
  • Capable of Interchanging 2" or 3" Tape Heads



Standard Equipment
  • One Bottom Tape Head
  • Two Side Belts
  • Maintenance Free, Oil-Less Air Cylinders
  • Instruction Manual



Optional Equipment
  • Locking heavy-duty caster (4 casters)
  • Stainless steel
  • Spare Parts Kit
  • Infeed/Exit Conveyor



Machine & Carton Specifications

Power Requirements:

110 Volts 60 Hz

Speed:

Up to 20 cartons/minute

Tape Head:

Standard: 2", Available: 3"

Shipping Weight:

350 lbs

Machine Dimensions ¹:

L: 73.2"
W: 29.9"
H: 32.7"

Carton Min/Max Range²:

L: 5.9" - 23.6"
W: 7.9" - 19.7"
H: 3.5" - 19.7"

This page last updated: 12/07/2006

The information herein is subject to change without notice.

¹ Machine weight and dimensions may vary depending on carton sizes. Please view brochure for complete machine specifications.

² Carton ranges are fully customizable. Please inquire with our sales team with your specific requirements.
