Manual Packing Station (MPBF)

Previous ‹‹ » Next

Manual Packing Station (MPBF)

Manual Packing Station (MPBF)

Overview

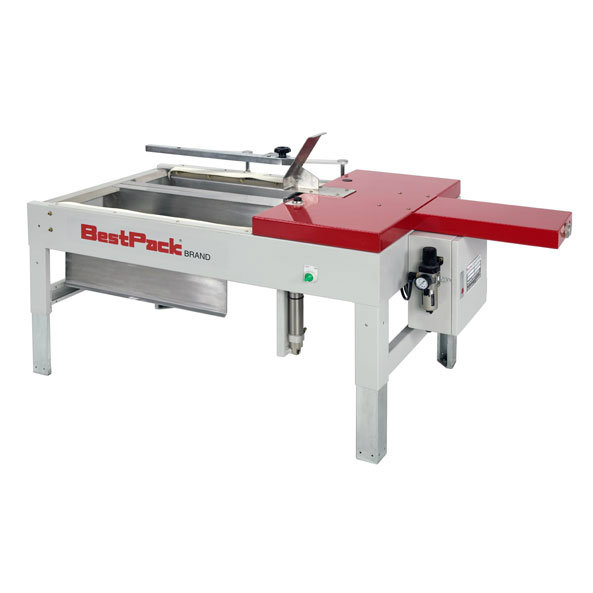

The BestPack MPBF bottom flap folder/packing station closes the bottom flaps and holds the carton in position while the operator fills the carton. The unit then pushes the carton to the next station.



Features
  • Stand alone units
  • Adjustble Bed Height from 24.5" to 31.0"
  • Will operate with any of BestPack's? adjustable or random systems
  • Air operated at 4-6 cfm at 80 lb. of pressure
  • Maintenance Free, Oil-less Air Cylinders
  • Pneumatic pusher that automatically pushes the box to the next station
  • No electricity needed
  • Cost Effective
  • Included one year warranty against defects on all parts



Machine & Carton Specifications

Power Requirements:

Up to 6 cartons/minute

Shipping Weight:

278 lbs

Machine Dimensions ?:

L: 66.0"
W: 29.0"
H: 36.0"

Carton Min/Max Range?:

L: 5.0" - 24.0"
W: 7.5" - 21.0"
H: Unlimited

This page last updated: 08/13/2007

The information herein is subject to change without notice.

? Machine weight and dimensions may vary depending on carton sizes. Please view brochure for complete machine specifications.

? Carton ranges are fully customizable. Please inquire with our sales team with your specific
